Modal Electronics Argon8X

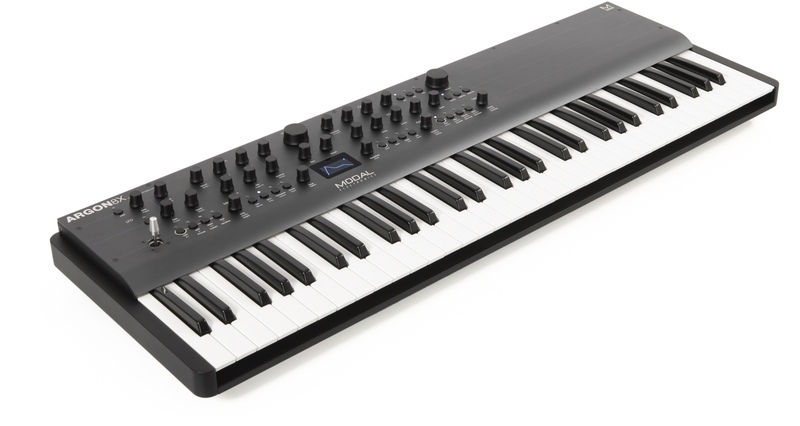

Modal Electronics Argon8X - 8 voice 61-keys wavetable synthesiser

Leaning on the heritage of our legendary OO series synthesisers, ARGON8X is a modern wavetable synth for music performers, producers and sound designers. With it’s transparent and rich sound, an array of realtime controls, full MPE support, a clear structured user interface and integrated performance tools, ARGON8X is a unique instrument, designed to deliver an unmatched sonic experience.

A premium 61-note keyboard with aftertouch is the perfect playground for demanding artists. The rugged aluminium chassis and professional I/Os allow ARGON8X to be integrated into every studio and live setup. MODALapp gives easy access to all ARGON8X functions and runs on MacOS/Windows/iOS/iPadOS and Android devices and is also available in AU/VST3 plug-in formats as MODALplugin.

• Perform with unique wavetable sounds, ranging from lush pads, soaring leads, moving soundscapes and earth shuttering basses
• Bring performance to a new level with MPE support, the integrated 512-note Realtime/Step Sequencer, 32-step programmable Arpeggiator and hugely powerful Animation Lanes
• Integrate ARGON8X into your production and live performances with the full-size MIDI connections and the 3.5mm Sync Ins and Outs
• Create and save your own signature sonic textures with morphable waveforms, analogue-style morphable filter, an immersive modulation matrix and flexible digital effects
• Express yourself with the class-leading 61-note key bed with aftertouch, built into a road-ready aluminium enclosure
• Access all synthesiser functions and update ARGON8X via the free MODALapp, available on macOS, Windows, iOS, iPadOS, Android and AU/VST3

Specifications:

Polyphony: True 8 voice polyphonic

MPE: Supports MPE-compatible MIDI controllers, allowing you to apply polyphonic control and expression to individual notes

Oscillators:
32 high-resolution wavetable oscillators, 4 per voice
180 carefully crafted wavetables split into 36 banks of 5 morphable waveform sets Additional PWM bank and 3 noise/modulation banks accessible on Oscillator 2
32 static wavetable modifiers including, de-rez, wave folders, waveshapers, phase shapers and rectify can be applied to the 180 wavetables to give a mind-boggling array of permutations and new waveshapes.
8 types of oscillator modifier including Phase Mod (FM), Ring Mod, Amp Mod, Hard Sync and Windowed Sync
Voice Drift and Width controls that help to create massive stereo soundscapes
Vintage Parameter and Oscillator Free Run to emulate the behaviours of vintage analogue synths

Filter:
Eight Filter types
Two ‘Standard’ filters are 2-pole state variable filters, based on the resonant filter found in other Modal synthesisers, morphing through: LP > BP > HP or LP > Notch > HP
Two ‘Classic’ 2-Pole state variable with a more rounded character and a softer resonance response, morphing through: LP > BP > HP
‘Ladder’ – 4 pole resonant ladder filter with pre-filter drive, morphing through: LP > BP > HP
‘Ladder Hybrid’ – 1 pole resonant ladder filter with pre-filter drive, morphing through: LP + Notch > Notch > HP + Notch
‘Ladder Phaser’ – Resonant ladder filter with pre-filter drive, morphing through: Notch > Phaser
‘Sallen-Key’ – 2 pole resonant Sallen-Key Filter with pre-filter drive, morphing through: LP > BP

Modulation:
3 dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously including negative (reverse) versions and multiple envelope curve options
2 Audio rate LFO’s with tempo sync (one poly, one global). Polyphonic LFO can sync to frequency divisions
8 assignable modulation slots and 4 additional fixed modulation routings for common assignments with 11 modulation sources and 52 modulation destinations

Sequencer and Arpeggiator:
Polyphonic Real-time sequencer with 512 notes and four recordable/editable parameter animations (Delay FX, LFO’s, sequencer and arpeggiator can be either clocked internally or externally)
Polyphonic Step Sequencer with 64 steps, 8 notes per step, 4 lanes of Parameter-Lock style animation, Step Input mode, multiple playback modes including gate modes and rest function
Built-In sophisticated programmable arpeggiator of 32 steps with rest capability with up to 2048 steps before repeating, multiple Arpeggiator direction modes.

FX:
Waveshaping distortion
Three incredibly powerful independent and user-configurable stereo FX engines for 26 Effects algorithms, incl. Drive, Chorus, Phaser, Flanger, Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb.

User Memory:
500 patch memories, all fully editable and ships with 300 factory programs
100 sequencer presets that can be linked to any patch for quickly loading arrangements
100 FX presets
8 Quick Recall slots accessible from the panel for quickly loading your favourite patches

Controls and Performance:
Premium FATAR 61-key Keyboard with velocity and channel aftertouch
29 endless encoders, 24 buttons
4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired
Multiple keyboard modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4
Glide/Portamento with both legato and staccato modes
Chord Invert control to easily create chord inversions and variations

Inputs and Outputs:
6.35 mm / 1/4″ TS dual-mono line outputs
6.35 mm / 1/4″ TRS headphone output
3.5 mm / 1/8″ TRS stereo audio input
MIDI DIN In and Out
3.5 mm / 1/8″ TS Analogue clock sync In and Out
Class compliant MIDI over USB connection
6.35 mm / 1/4″ TRS expression pedal input
6.35 mm / 1/4″ TS sustain pedal input

Enclosure and Display:
Road-ready steel and aluminium enclosure with economical stained bamboo end cheeks
1,54" large OLED display for instant visual feedback at all times of playing/editing

Editor Software:
Free MODALapp software editor available for macOS, Windows, iOS and Android
MODALapp can also be run within your Digital Audio Workstation (DAW), with VST3 and AU versions available

Power: DC-9.0V – 1.5A centre-positive

Dimensions: (L x W x H): 885 x 300 x 100 mm

Weight: 9 kg
