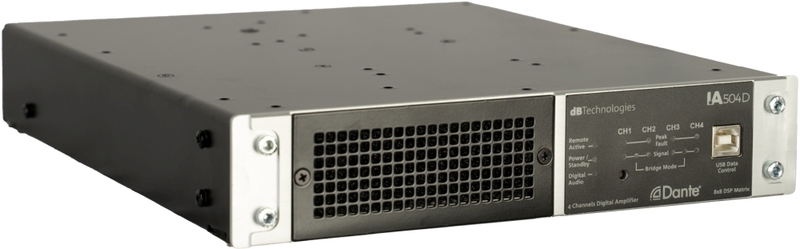

dB Technologies IA504D

dB Technologies IA504D (Dante)

IA504 is a half rack sized class-D power amplifier that can work both for constant voltage systems (70 or 100 Volts) as well as professional audio applications with 4 time 125 W 4 ohms, fit for stereo or bridge configuration. Equipped with onboard DSP, full range PSU with Power factor correction and a GPIO interface.

• Type: CLASS D Half-rack Amplifier
• Dante ports
• Single channel mode: 4 Ohm / 8 Ohm / 16 Ohm (no 70V / 100V)
• Bridged mode: 8 Ohm / 16 Ohm
• Preset: Flat, dBTechnologies speaker, User preset
• Frequency Response: 20 - 20.000 Hz
• Total rated power: 280 W RMS
• Single channel driven: 4 Ohm: 425W Peak / 280W RMS, 8 Ohm: 245W Peak / 245W RMS, 16 Ohm: 135W Peak / 135W RMS, 8 Ohm (Bridge): 619W Peak / 280W RMS, 70V: 250W RMS, 100V: 240W RMS
• All channels driven: 4 Ohm: 225W Peak / 70w RMS, 8 Ohm: 180W Peak /70 W RMS, 16 Ohm: 125W Peak / 70W RMS
• 8 Ohm (Bridge): 440W Peak / 140W RMS, 70V: 140W RMS, 100V: 140W RMS
• Mains connections: IEC 10A connector
• Limiters Compressor on processing channels
• Peak limiter on output channel (also used in dBTechnologies preset)
• Input Channel: 4 Analog Balanced (EuroBlock 3.81mm)
• Output Channel: 4 (EuroBlock 5.08mm)
• Service Data: Frontal USB (AuroraNet setup & control)
• Networking: 2 x RJ45 RDNet (AuroraNet setup & control)
• Width: 222 mm
• Height: 44 mm
• Depth: 256 mm
• Weight: 1.82 kg
