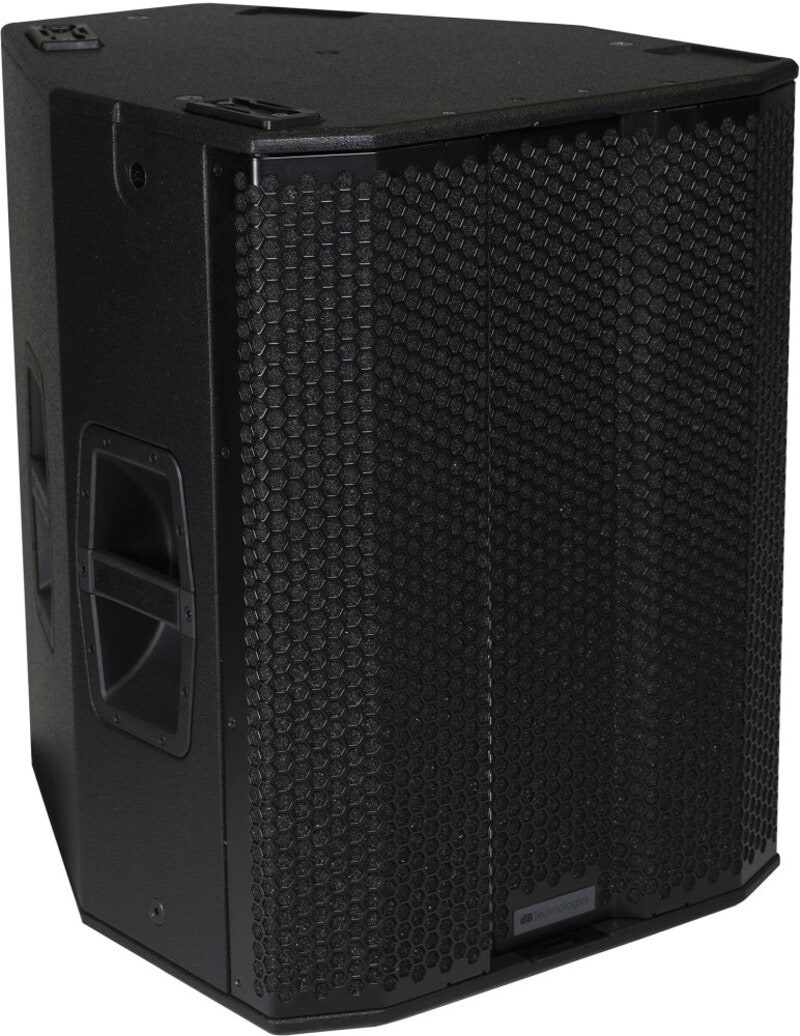

dB Technologies FIFTY TOP
Artikelnummer 2862500Impressive active speaker with 4x 10” woofers + 2 compression drivers. Max SPL137 dB
dB Technologies FIFTY TOP
The optimal way to deploy fifty line is either ground stack one or two Fifty Tops on Fifty subs, or fly the Fifty tops using the dedicated flybar.
The unique design of Fifty Top allows up to two units to be vertically coupled seamlessly, in order to double the output capabilities. The waveguide is designed to minimize interferences between two Fifty tops stacked together: all you need to do is flip one of the two upside down.
When the venue requires a wider coverage, it’s easy to either fly or ground stack several Fifty Tops side by side, spreading the horizontal dispersion of the PA system to any desired amount.
Flying Fifty tops is just as easy as stack them: the flybar design fits either one or two-height tops, without he need to own different adaptors, and the dollies designed for transport are optimized for a smooth setup and tear down of the system. Nevertheless, the on-board rotary encoder provides for several quick-recall presets to adapt the system to basic applications.
Remote Control
Fifty Line also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use.
Impressive Performance through acoustic innovation
The main purpose of Fifty Line is to be able develop the highest possible SPL levels whilst keeping the overall power consumption very low. This is achieved by maximizing the radiating real estate of the transducers on-board the Fifty Top.
Each of the Tops is comprised of 4x 10” woofers and 2 Compression drivers, carefully tuned for the utmost fidelity even at very high working loads.
FIR filters on board
In digital audio domain, FIR (Finite Impulse Response) filters operate on frequency response while mantaining a linear phase. dBTechnologies’ R&D tuned Fifty line using FIR Filters to optimize the overall system performance with pristine vocal reproduction and a much better high-frequency coherence when two Fifty Tops are paired in head stack mode.
dBTechnologies signature voicing is granted by the DSP power embedded in our Class-D 1600W RMS power amplifier, equipped in every Fifty top.
Technical Data
- Speaker Type: 2-Way Active Full-range Speaker
- Frequency Response: [-6dB] 65 - 19.300 Hz
- Max SPL: 137 dB
- HF: 2x 1.4" exit
- HF Voice Coil3"
- Directivity: (HxV)60 x +15°/- 35°
- Crossover Frequency: 760 Hz
- LF: 4x 10"
- LF Voice Coil: 2"
- Amp Class: Class-D
- Peak Power: 3200 W
- RMS Power: 1600 W
- Cooling: Passive Convection
- Controller: DSP 32 bit
- AD/DA Converter24bit/96kHz
- Signal Input: 1 x XLR female
- Signal Out: 1 x XLR male
- USB connector:Type B - Data Service
- Controls: 1 rotary encoder (Preset)
- Power socket: 1xPowerCon TRUE1 Mains, 1xPowerCon TRUE1 Link
- Housing: Plywood
- Grille: Full metal grille
- Rigging point: Flyable with accessories
- Handles: 2x side
- Width: 500 mm
- Height: 650 mm
- Depth: 600 mm
- Weight: 38.1Kg
