dB Technologies VIO X205-100

db Technologies VIO X205-100

The powerful and detailed sound of VIO X family into a small, ultra-performing cabinet: ideal as front-fill or under balcony in large VIO sound reinforcement systems and perfect for vertical or horizontal fixed installation.

VIO X205 fits any project as full-range PA, fixed installation, FOH monitoring, front-fill in large sound reinforcement systems, and more.

VIO X205 is a 2-way speaker equipped with 2x5” (1” voice coil) and 1x1” driver (1.4” voice coil). The 400 W RMS DigiproG3 amplifier powers a cabinet able to deliver up to 126 dB despite its very compact dimensions.
Advanced sound processing featuring Linear Phase FIR Filters allows VIO X205 to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.

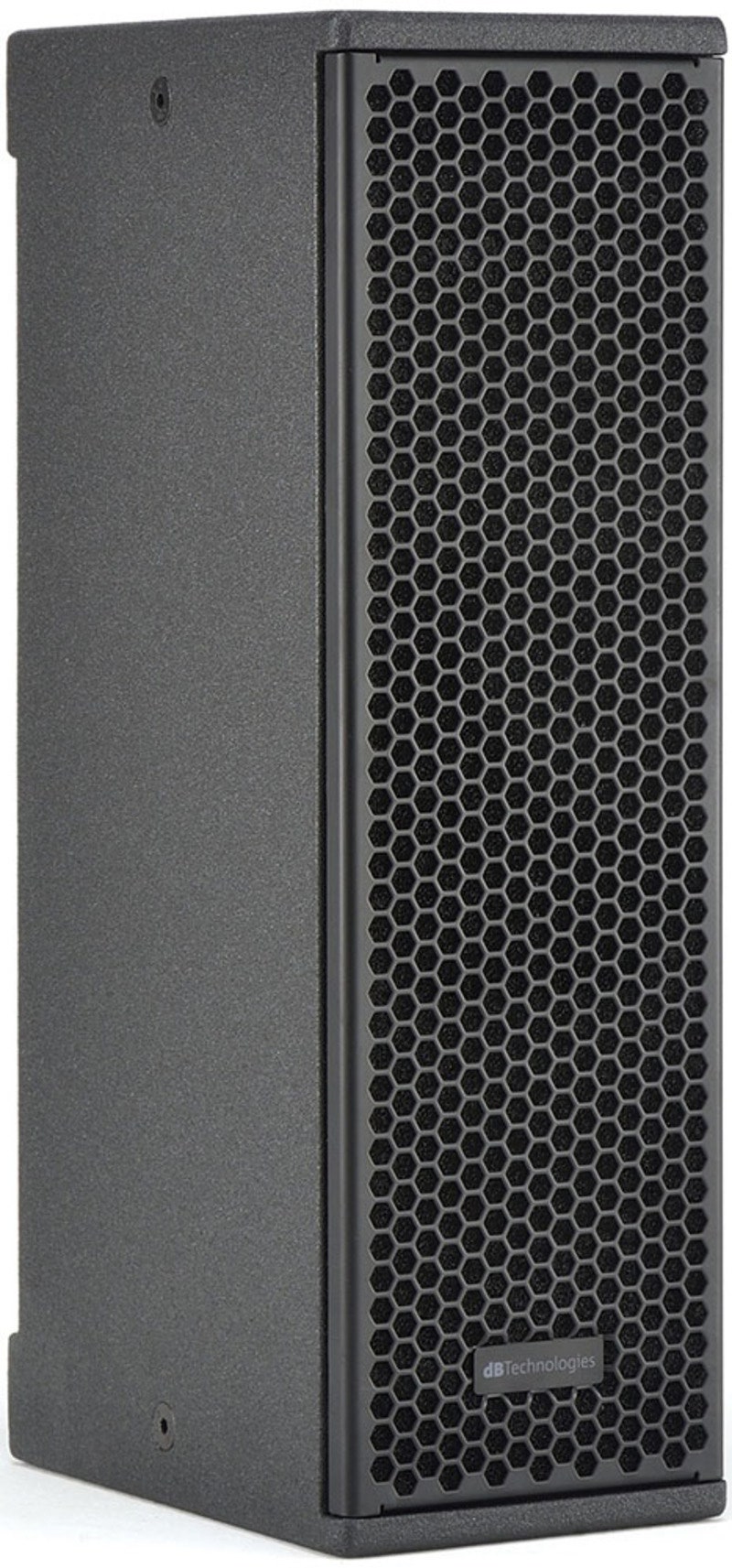

This solid wooden cabinet is reinforced with a polyurea finish and features M10 threaded nuts on top and bottom allowing installation with accessories WB-VIOX205 H (horizontal bracket) or WB-VIOX205 V (vertical bracket). The cabinet can be easily installed on pole thanks to SA-VIOX205 pole mount adaptor (35mm) allowing 2 tilt options.

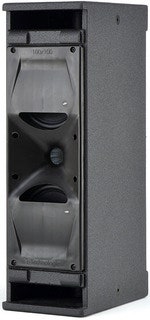

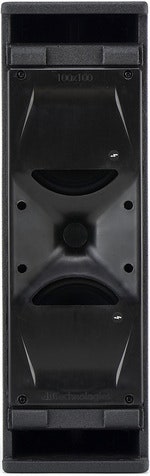

Keeping in mind the needs of the most demanding professionals, VIO X205 is available in 2 models featuring 2 different constant directivity horns allowing a 60°x60° (for VIO X205-60) or 100°x100° (for VIO X205-100) dispersion pattern (both horizontal & vertical).

Technical Data

• Speaker Type: 2 Way Active Loudspeaker
• Usable bandwidth: [-10dB] 75 - 21.000 Hz
• Frequency Response: [-6dB] 80 - 20.000 Hz
• Max SPL: 126 dB
• HF: 1x 1”, 1.4 v.c.
• LF: 2x 5”, 1" v.c
• Directivity: 100° x 100°
• Amplifier: 400 W RMS Class-D Digipro® G3
• Cooling: Convection
• Power Supply: Auto-range SMPS
• Controller: DSP 28/56 bit
• AD/DA Converter: 24 bit/48 kHz

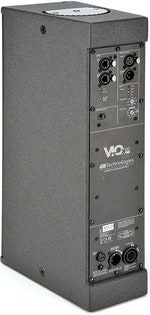

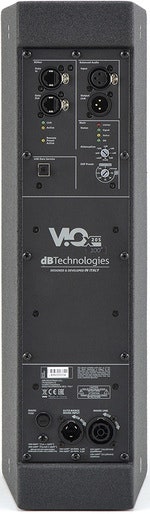

• Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
• Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
• Power Socket: 1x PowerCON TRUE1 In, 1x PowerCON TRUE1 Out
• 1x Rotary Encoder (8x EQ presets)
• 1x Input Attenuation Rotary Switch
• 1x On LED
• 1x Status LED
• 1x Signal LED
• 1x Limiter LED
• Housing: Wooden Cabinet, Polyurea painting
• Handles: 1x (top)
• Wedge Angle: Monitor Use 5°
• Rigging points: 2x M10 Threaded Nuts (top and bottom)
• Width: 150 mm
• Height: 485 mm
• Depth: 240 mm
• Weight: 7.8 kg
