dB Technologies VIO X315

db Technologies VIO X315

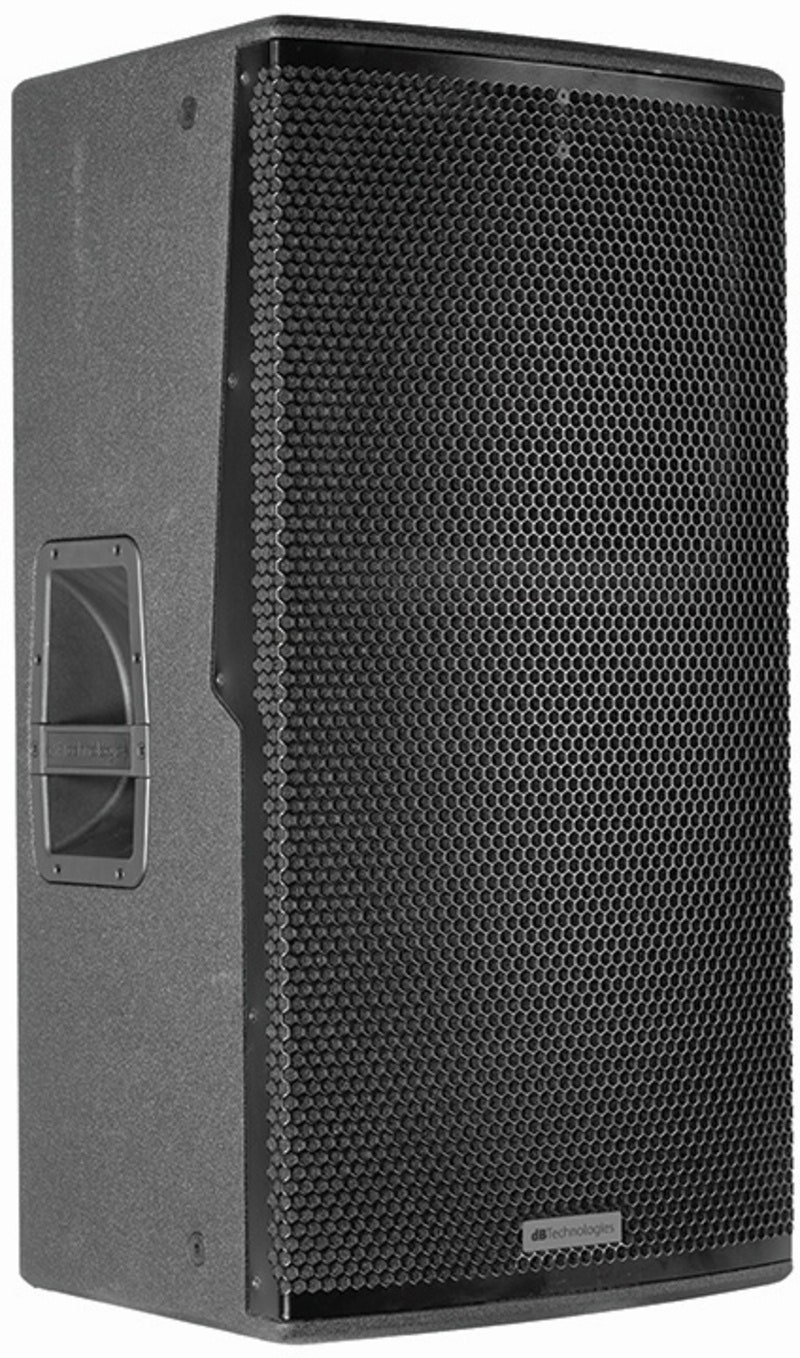

VIO X315 is a self-powered point source speakers delivering outstanding sound pressure levels for the size, thanks to premium components, a three-way tri-amplified design and state of the art electronics.

he MF-HF coaxial component mounted in VIO X315 utilize the same transducer used in the VIO L1610 line array module: it's a 4” voice coil plus 2.5” voice coil coaxial driver, an heavy-duty and high-fidelity transducer reproducing from 500Hz up.

When it comes down to detailed mid-range reproduction, a compression driver diaphragm is much quicker and more accurate than a similar sized woofer. Furthermore, because of the compact dimensions, this content can be easily dispersed through a horn, just like you would do with an HF driver, for improved control over the sonic pattern.

These characteristics result in an incredibly faithful and meticulous reproduction of the most critical frequency range, essential for clear-cut intelligible vocals and instrument separation in your mix.

Since a great portion of the frequency content is horn loaded, not only is the sound pressure level impressive due to the acoustic loading, but also directivity control is maximized.

Last but not least, the sum of all these acoustic design choices combined with cutting edge class-D amplifiers and DSP processing result in remarkable sound pressure levels, as high as 137dB.

VIO X315 is equipped with 1x 15" neodymium woofers in a dipole configuration, so the speaker benefits from all the advantages of this arrangement such as a very prominent directivity control for low-mids and a precise, fast, and extended response of the bottom end.

The Coaxial mid-high frequency compression driver is mounted behind a 90° by 40° rotatable horn, and all the components are arranged around the center of this point source, resulting in a symmetrical dispersion.

Technical Data

• Speaker Type: 3 Way Active Loudspeaker
• Usable bandwidth: [-10dB] 34 - 19.200 Hz
• Frequency Response: [-6dB] 37 - 18.000 Hz
• Max SPL: 137 dB
• HF/MF: 1x 1.4”, 4"- 2.5" v.c. Coaxial Neo
• LF: 1x 15”, 4" v.c Neo
• Directivity: 90° x 50° [H x V]
• Amplifier: 1400 W RMS Class-D Digipro® G4
• Cooling: Convection
• Power Supply: Full range SMPS with PFC
• Controller: DSP 32 bit
• AD/DA Converter: 24 bit/96 kHz

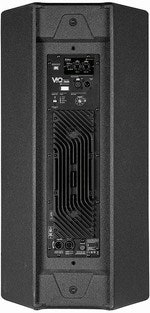

• Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
• Signal Output: 1 x XLR balanced, 1 x RJ45 Link (RDNet)
• Power Socket1x PowerCON TRUE1 In, 1x PowerCON TRUE1 Out
• 1x input Rotary Encoder (8x presets)
• 1x Ready LED
• 1x Mute/Prot LED
• 1x Signal LED
• 1x Limiter LED
• 1x Frontal LED
• 1x Button and 1x LED System Test
• Housing: Wooden Cabinet
• Handles: 1x on top / 1x on bottom
• Rigging points: flyable with bracket
• Width: 420 mm
• Height: 820 mm
• Depth: 520 mm
• Weight: 39,5 kg
