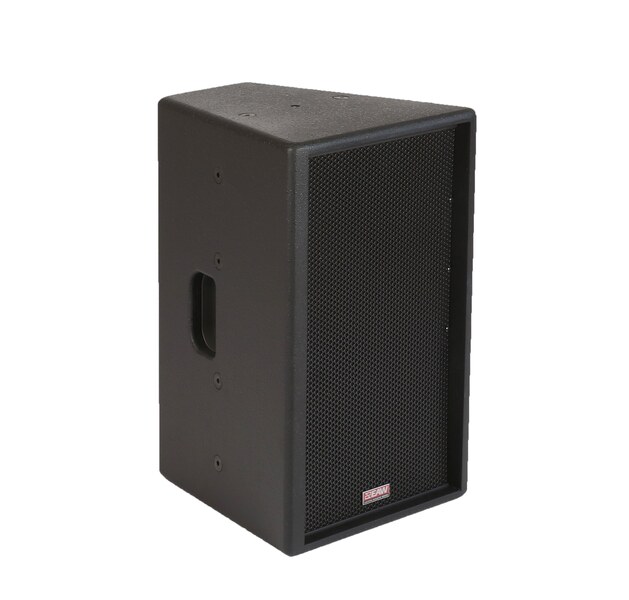

The VFR109i two-way, full range loudspeaker system includes a directradiating, vented,
10-in LF cone transducer and a 1-in exit / 1.75-in voice coil HF compression driver loaded
with a large, square, user-rotatable 90x60 coverage pattern horn built on the classic
MK Series horns. These horns deliver exceptional high frequency dispersion, and their
square shape lets users “rotate the enclosure around the horn” to maintain directivity in
a horizontal configuration. Because VF Series full range systems (VFR/VFM) use HF
sections similar to those developed for the MK Series, EAW engineers could employ
the same revolutionary “beamwidth-matching” internal passive crossover/ filter
networks that set the MK Series apart from all other two-way systems.
If powered by an EAW-specified amplifier or via a UX Series digital signal processor,
the VFR109i can enjoy the benefits of EAW Focusing, a technology that eliminates
the anomalies inherent in the time domain of any loudspeaker.
- Two-way, full range loudspeaker
- Beamwidth-matching crossover point
- User-rotatable horn for optimized pattern control
- Easy lift handles (Black version only)
