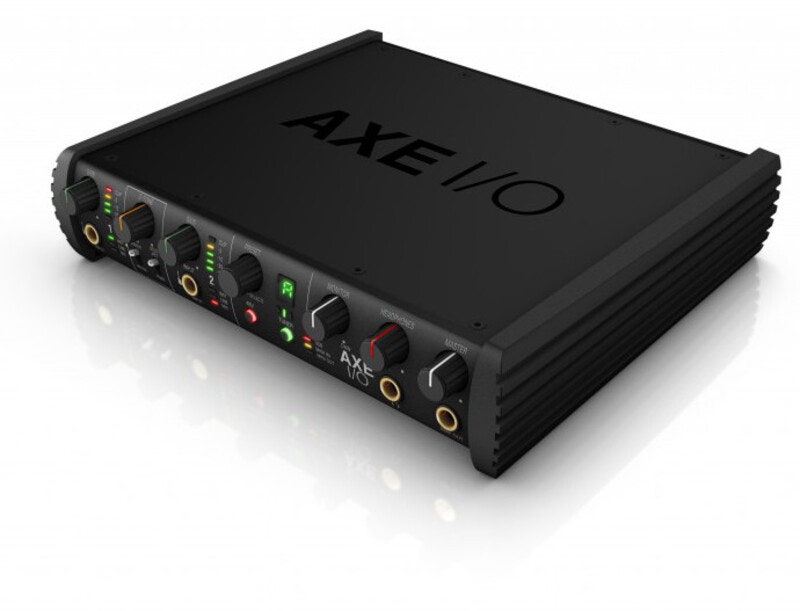

IK Multimedia AXE I/O

IK Multimedia AXE I/O

AXE I/O is a professional 2 in/5 out audio interface – and controller - designed specifically with the needs of the recording guitarist in mind, providing best-in-class sound quality and powerful features aimed squarely at making your recordings faster, easier and better than ever. AXE I/O offers an exclusive triple-topology, fully discrete input circuit, with both PURE and JFET input stages, to go from transparent to tube-like with just a single switch. Its patent-pending Z-Tone® impedance-adapting circuit interacts with your guitar's pick-ups to give you a massive range of tonal flexibility, you’ve never heard before. AXE I/O also includes a dedicated Amp Out, so you can create the perfect Tone Models of your amps and pedals using TONEX software. Or process your recorded tracks using real guitar amps and stomps without the need for external accessories (and without having to unplug your gear). This low-noise output also eliminates ground loops during amplification and Tone Modeling to keep your high-gain amps as quiet as possible.

Front Panel

• Two 1/4" instrument input jacks
• Two analog potentiometers for Input GAIN
• Two 5 segments input level meter (peak)
• Two INST, LINE, MIC LEDs
• Analog potentiometers for Z-Tone control
• Pick-Up selector (PASSIVE/ACTIVE)
• Preamp topology selector (JFET/PURE)
• +48V phantom power switch
• Tuner switch
• Tuner display and LEDs
• USB LEDS
• MIDI IN/OUT LEDs
• push-encoder for Presets
• Monitor knob
• 1/4" headphones output jack
• Master potentiometer for main output control
• 1/4" Amp output jack

Rear Panel

• On/Off power switch
• External DC power input
• MIDI I/O 5-pin DIN connectors
• B-Type USB socket for connecting a computer (Mac/PC)
• 2 x 1/4" TRS External controllers sockets
• 2 x 1/4" TRS Balanced floating line outputs
• 2 x 1/4" TRS Unbalanced line outputs
• 2 Combo sockets for MIC input and Instrument input (auto selecting)

Package includes

• AXE I/O
• USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
